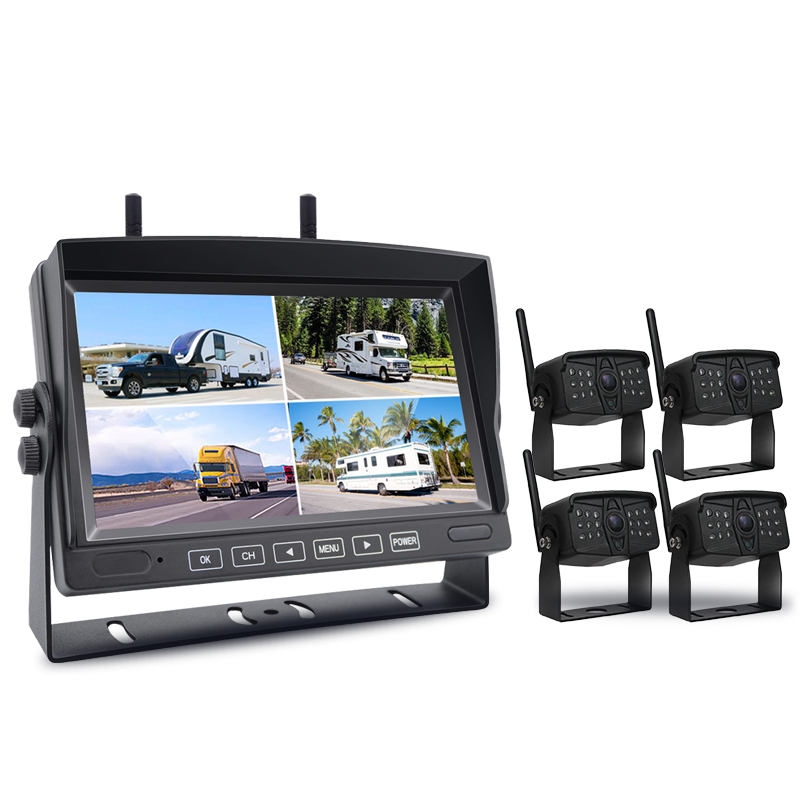

Wireless camera system
Products Features
Vehicle industrial-grade appearance design；

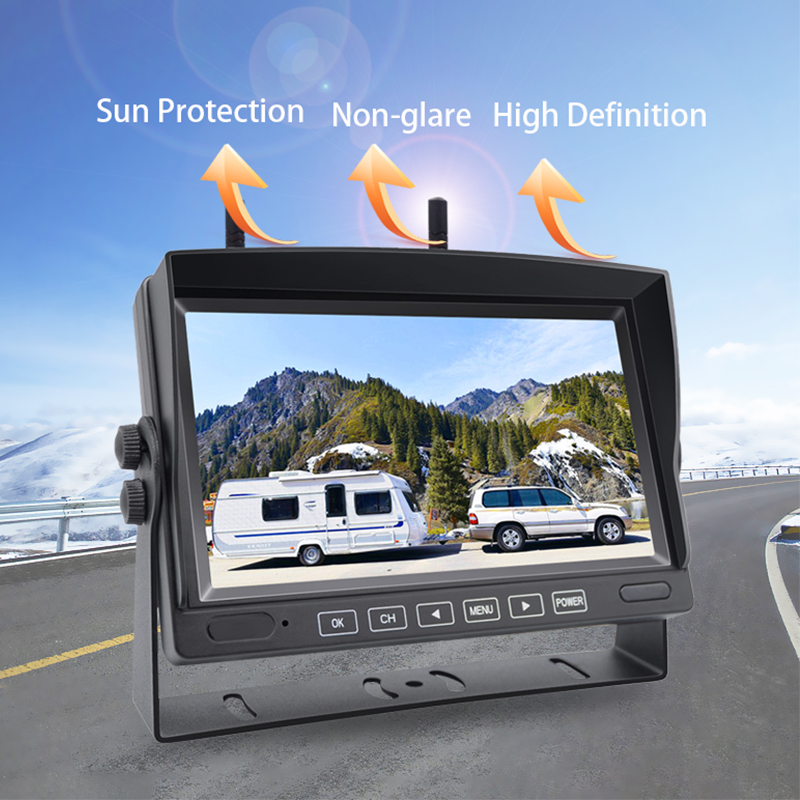

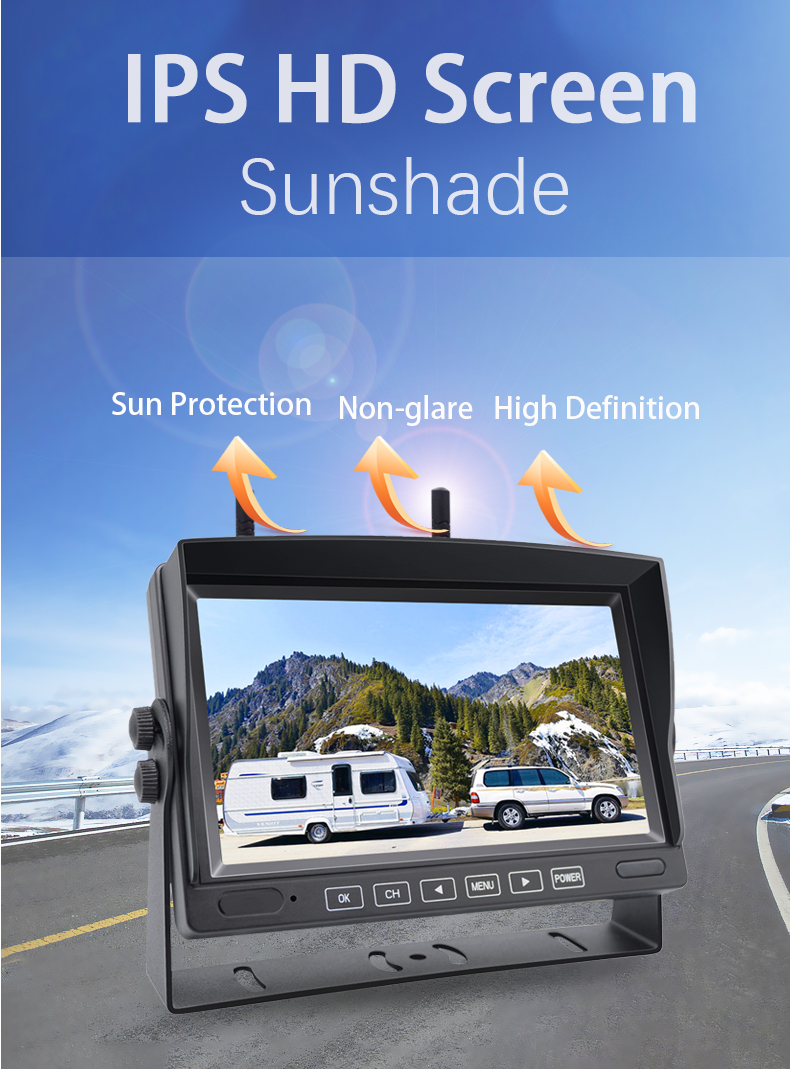

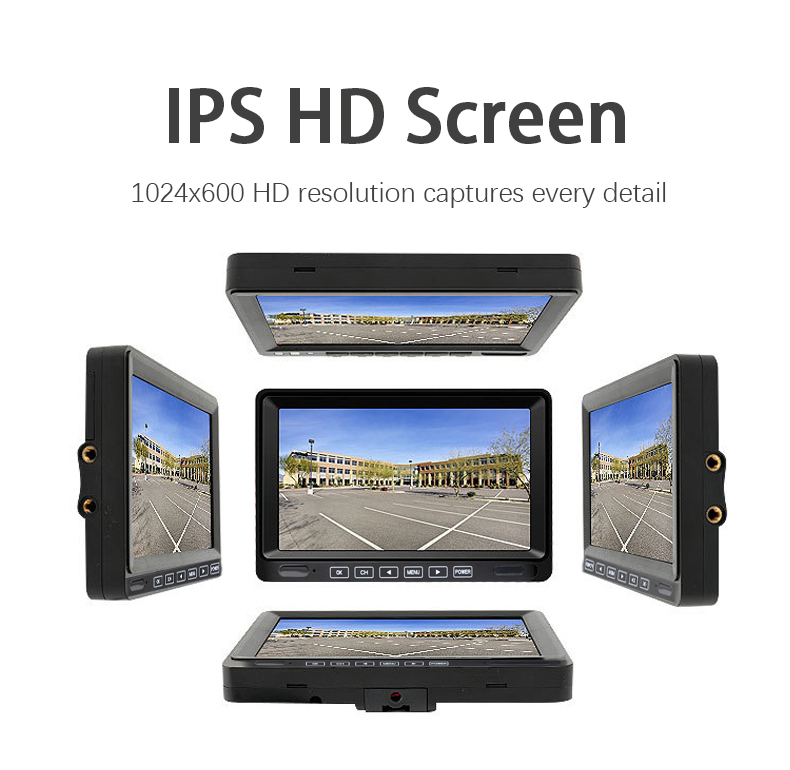

High-brightness IPS LCD with energy-saving and long life;

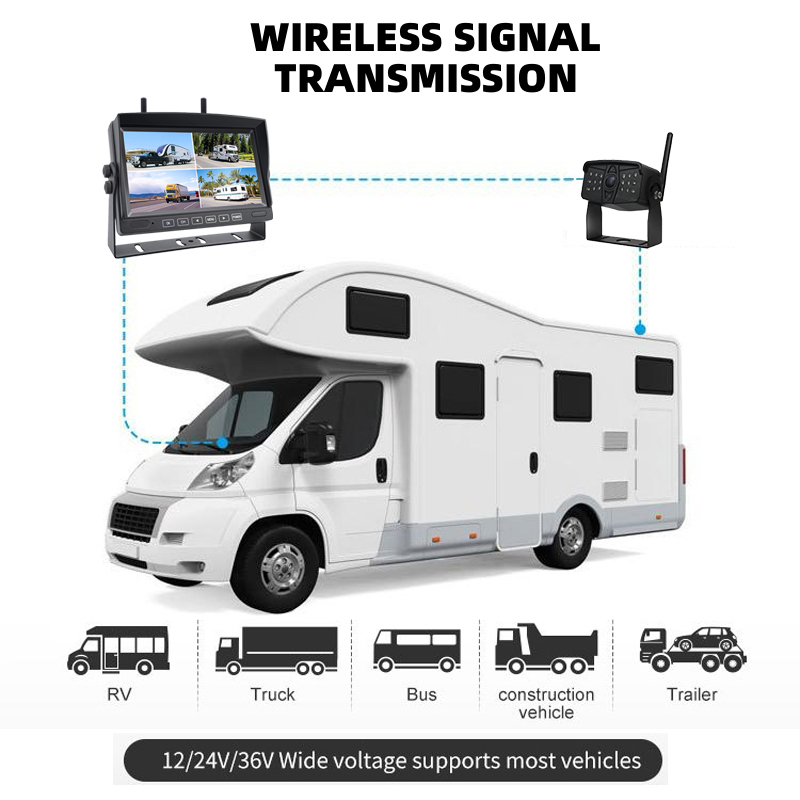

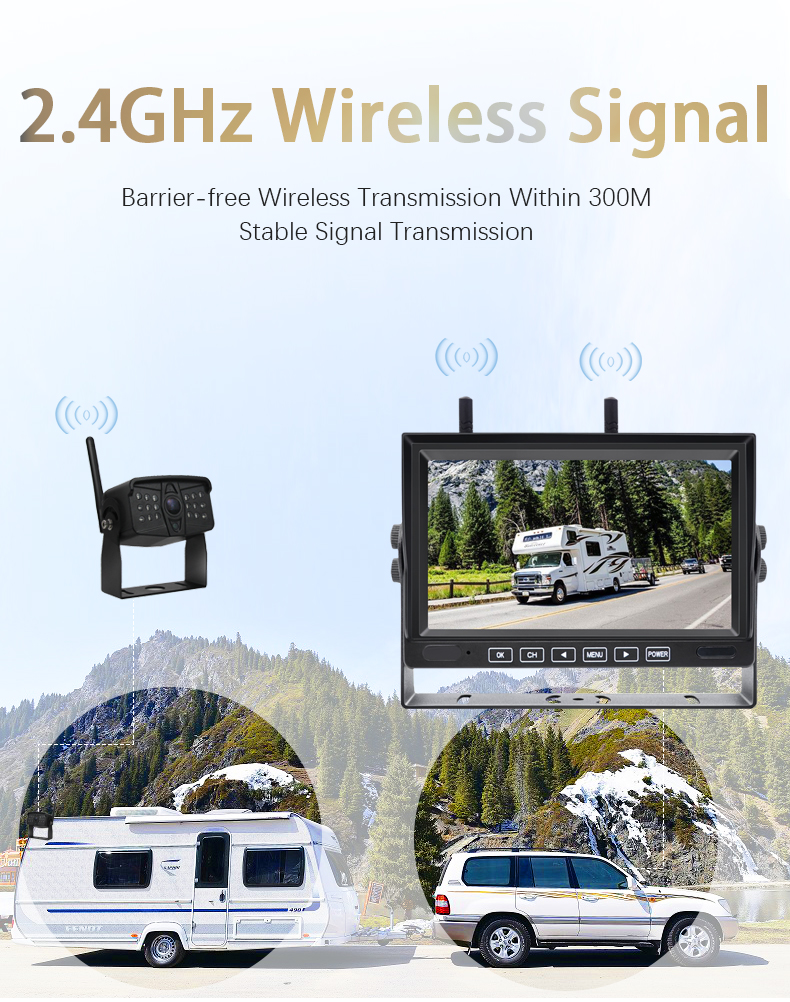

RF2.4G digital wireless transmission
Strong anti-interference ability
Long transmission distance up to 450m in the open area
Products Advantages

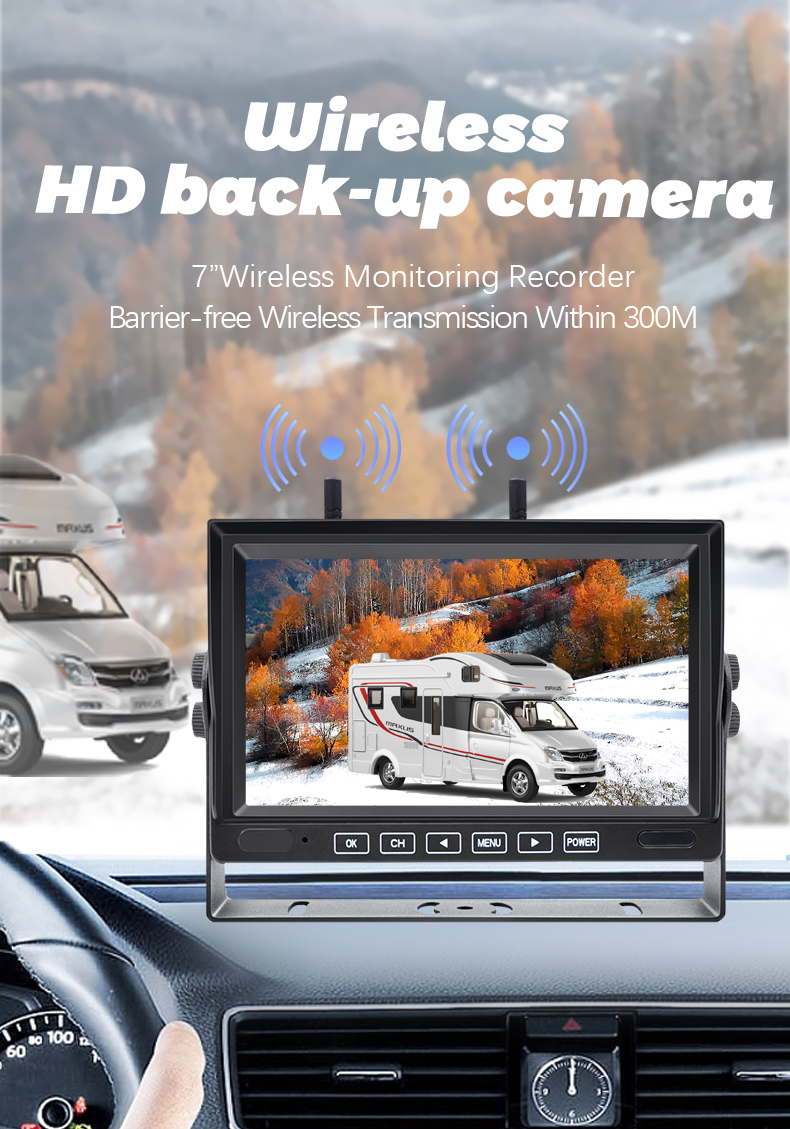

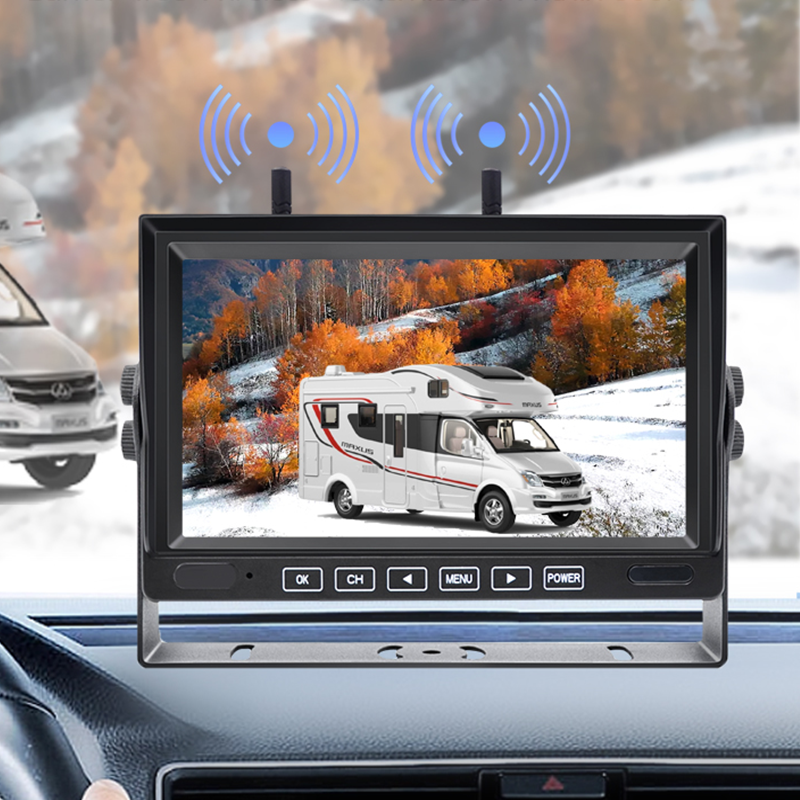

The 7-inch wireless backup camera system is particularly useful in crowded city areas and parking lots, assisting drivers in finding suitable parking spaces without wasting time or effort.
Garage parking: When parking in a garage, the system enables drivers to accurately position their vehicle within limited space, avoiding accidental collisions with walls, shelving, or other objects.
Avoiding collisions: The system's rear view camera helps in preventing collisions with pedestrians, cyclists, or other vehicles, especially in dense traffic or crowded areas. Provides enhanced visibility for towing applications, allowing drivers to reverse while towing trailers with ease.

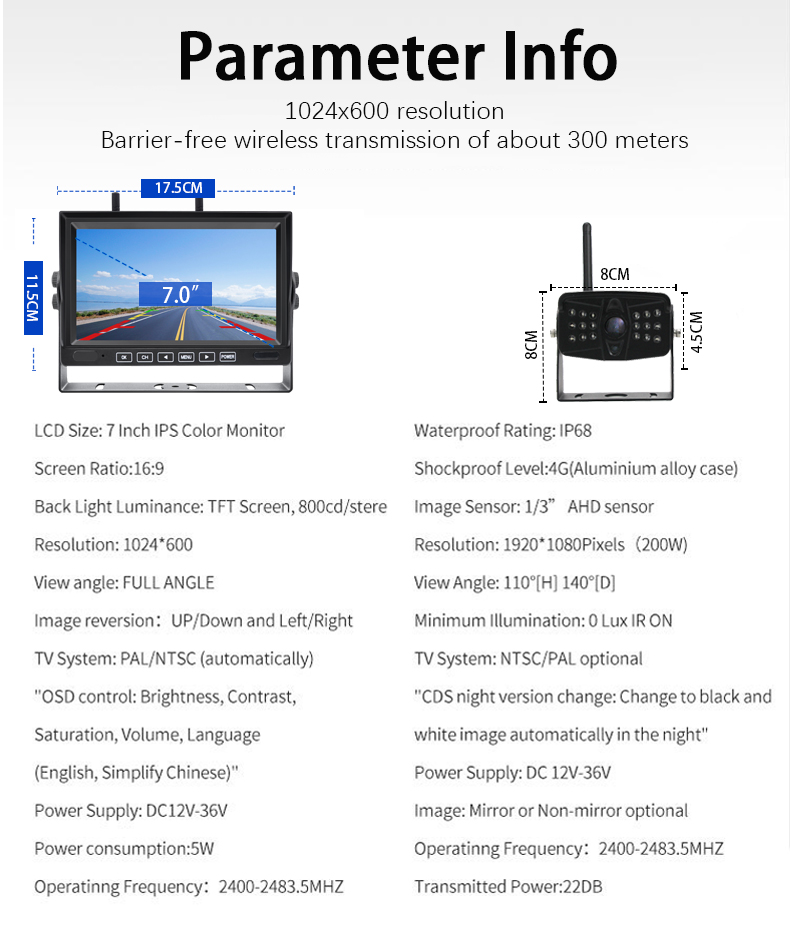

Products Parameters
| Item | Parameters |
| Transmission | RF2.4G digital wireless |
| Screen Resolution | 1024*600 |
| Voltage of monitor | DC12V-DC35V |
| Input signal | 720P |

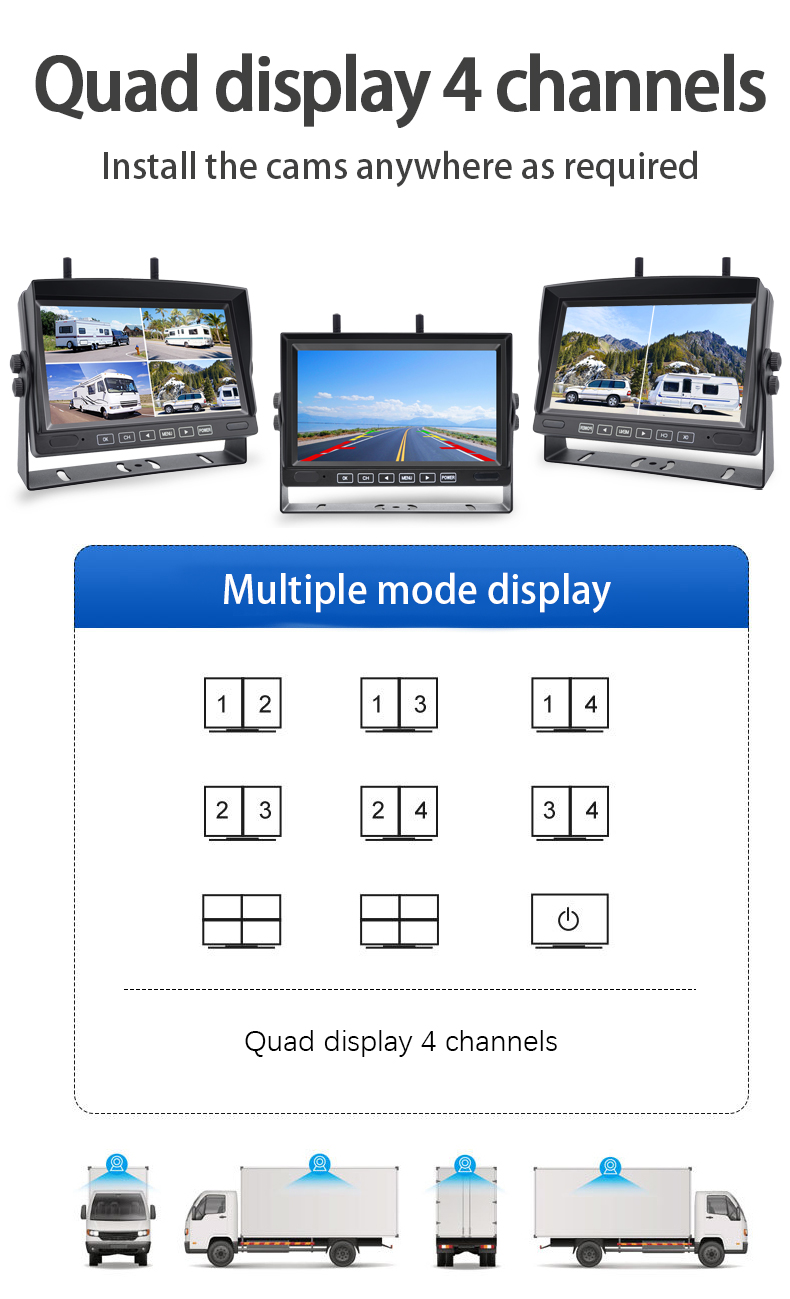

| Display mode | Single screen/2 Split screen/4 Quad screen |

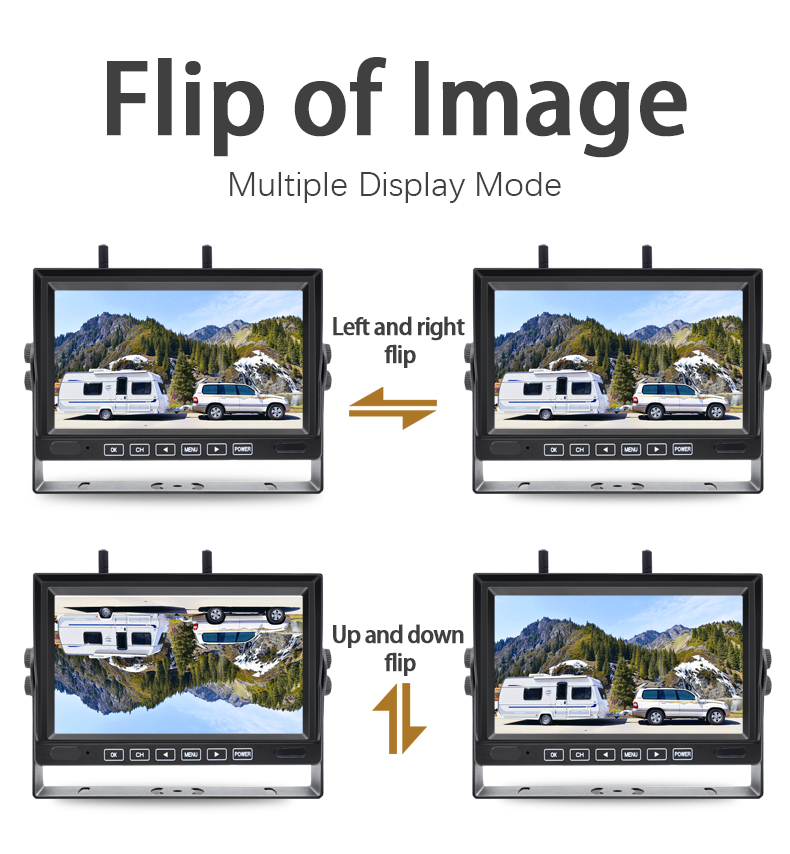

| Flip | Support |
| Guide line | On/off, adjustable |
| Mirror function | On/off |
| Operating temperature | -20℃-70℃ |
| Storage temperature | -30℃-80℃ |
| Loop recording | Support |
| Storage function | Max support 128G |
| Transmission distance | 450 meters (in the open area) |
| Language | Chinese, English, Italian,Spanish,German, Japanese,Russian, French, etc. |
| Protection level | More than IK07 |

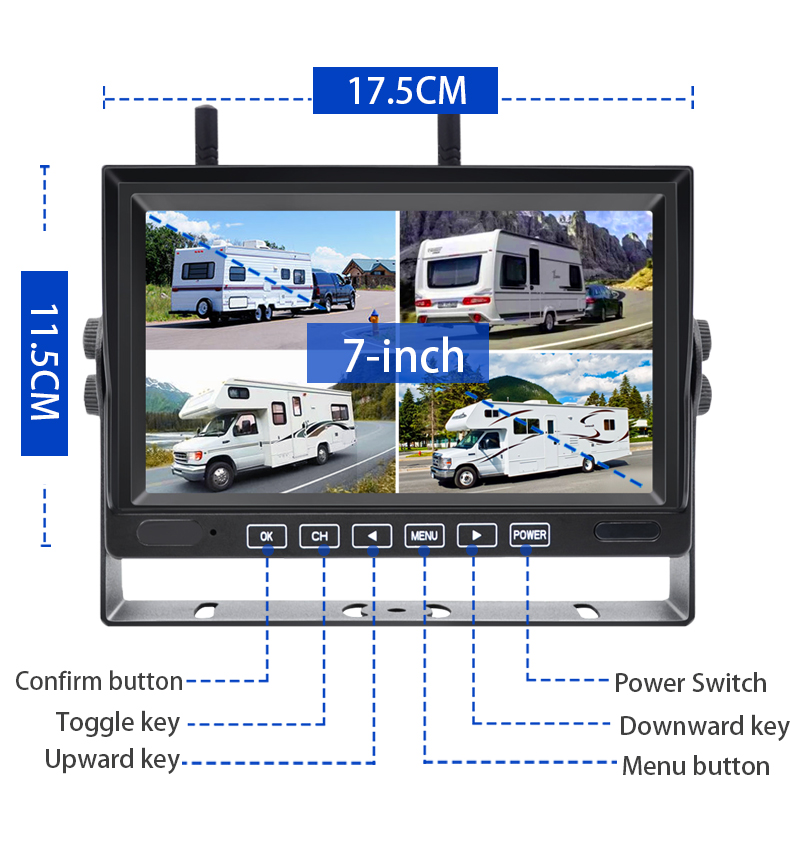

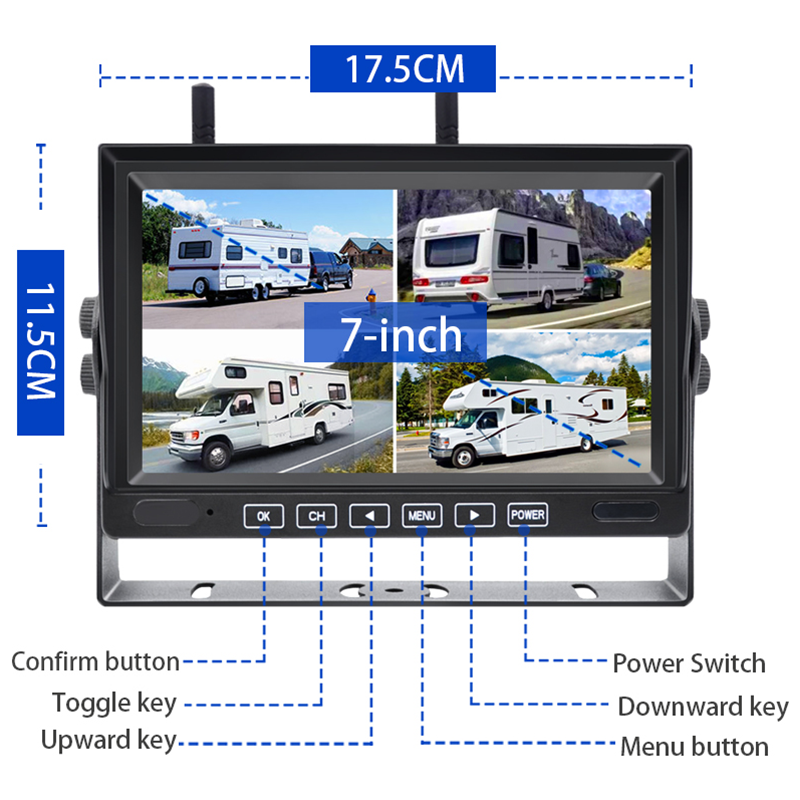

| Operating mode | Button/Infrared remote control |
| LOGO | Customizable |
| Angle of camera | 135° |

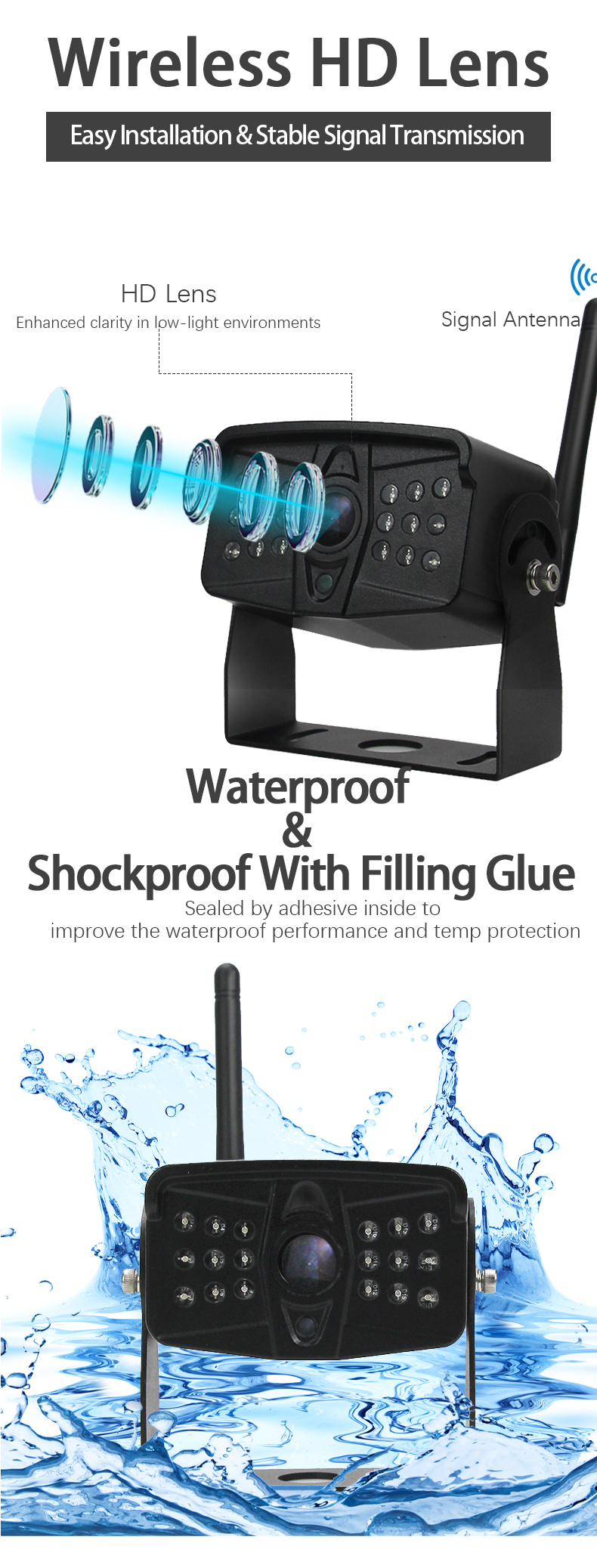

| Waterproof level of camera | IP67 |

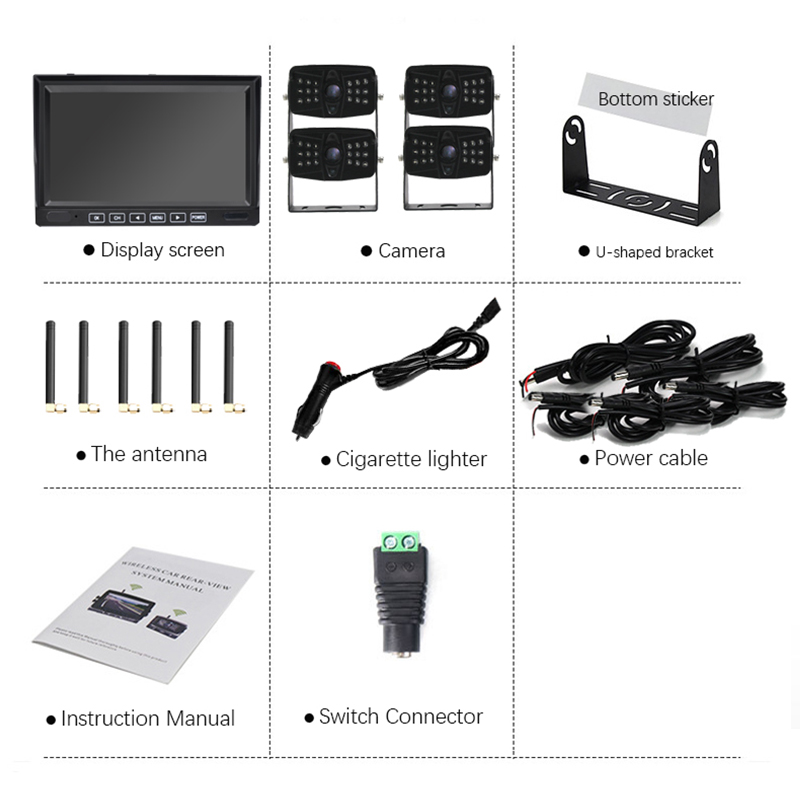

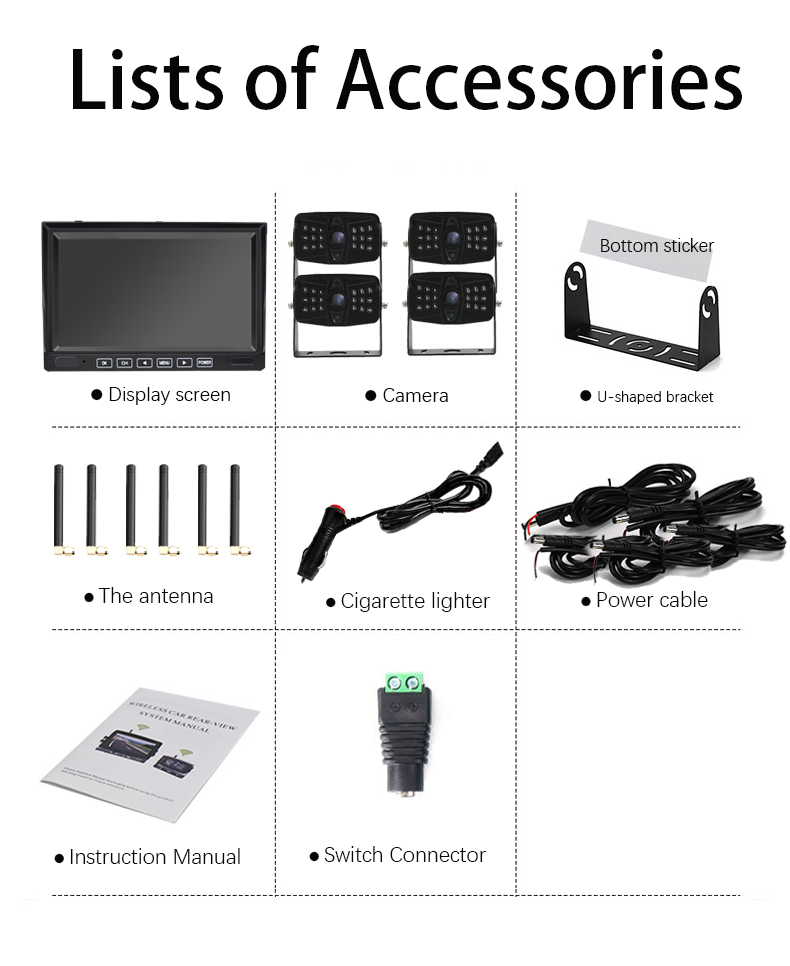

| Accessories | Power bank/ solar panel |
| Image enlargement | Support |
Factory Capacity
Annual output value：100 million
Monthly production: 200000pcs/per Month
MOQ: 1000pcs
Quality guarantee& After-Sales Supports
Warranty period: 1 year.
After-sales service: During the warranty period, if the product has quality problems or malfunctions, consumers can enjoy after-sales services such as repair.
After-sales service costs: If there is a problem with the product that is not covered by the warranty, consumers may need to pay for repairs.
After-sales service process: Consumers can apply for after-sales service through customer service phone numbers, online channels, or at physical stores.
Factory Supports
OEM、 ODM、 LOGO-Customizable
Factories typically provide customers with support in the following areas:
1、Customized services: Customize product specifications, design and packaging according to customer needs to meet customers' special needs.
2、Technical support: Provide product technical parameters, operating instructions, technical training and other support to help customers better understand and use the product.
3、After-sales service: Provide product warranty period and after-sales service policy, including repair, replacement and return services, to ensure that customers have complete after-sales protection after purchase.
4、Supply chain support: Provide product supply cycles and logistics arrangements to ensure that products can be delivered to customers on time.
5、Market support: Provide marketing materials, promotional activity support, etc. to help customers promote product sales.
Patents & Certificate
IS09001:2015、IATF16949:2016、E-Mark、CE、ROHS、SGS、RED
QC Control
QC、IQC、IPQC、QA、FQC、OQC
Factory Introduction
ZYX Co., Ltd. was established in 2014. It is a high-tech enterprise integrating R&D, production and sales. The factory covers an area of 10000 square meters and has 150 employees. Focus on the field of automotive electronics, the main products are: Car camera, car monitor, car video recorder MDVR, car rearview system, radar detection system, electronic rearview mirror, driving recorder, 360 bird view system, image vision sensor, camera module, LCD Driver Board, autonomous driving assistance system, ADAS, DMS, BSD, etc.
At present, it has 6 SMT mounters, 4 assembly lines and other advanced equipment to ensure quality and production capacity.
